| Place of Origin: | China |
|---|---|
| Brand Name: | AG SONIC |
| Certification: | CE |
| Model Number: | T-144S |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | 1unit/wooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300units/month |
| Model: | T-288S | Tank Size: | L150xW150xH80cm |
|---|---|---|---|
| Tank Capacity: | 1800L | Name: | Ultrasonic Cleaner With Hearter |
| Ultrasonic Power: | 2400W | Heating Power: | 30KW |
| Used: | Aluminium Pipe | Materil: | SS304 / 316 |
| High Light: | industrial ultrasonic cleaning machine,industrial ultrasonic cleaning tanks |
||

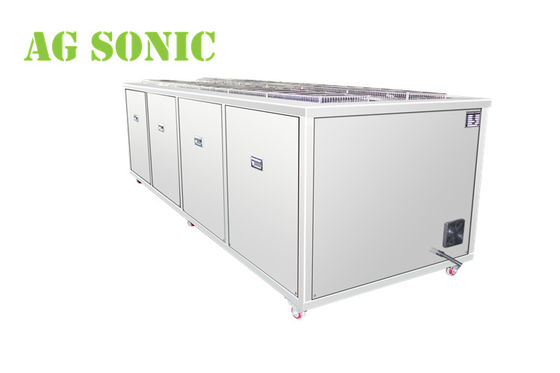

Cleaner Solotion Include Baske For Cleaning Aluminium Pipe Ultrasonic Cleaner With Hearter
Long Stainless Steel Round Tubes With 2 Tank Ultrasonic Cleaning And Rinsing
| Model No. | T-2180 |
| Ultrasonic tank size(mm) | 2700x310x370mm (105” L x 12” W x 14.5”) |
| Rinsing tank size(mm) | 2700x310x370mm(105” L x 12” W x 14.5”) |
| Capacity | 310liter |
| Ultrasonic power | 4500W |
| Heating power | 9KW |
| Transducer numbers | 90pcs |
| Ultrasonic frequency | 28khz or 40khz |
| Timer | 0~30min adjustable |
| Heater | 20~80C adjustable |
| Material | Stainless steel 304 |
| Power supply | AC220V, 3phase , AC380V/415V 3phase |
| Optional | Filtration system |
Why Clean Stainless Steel Pipe with Ultrasonics?
Delivering and using clean parts is not always obvious. Certainly, no one wants to handle a dirty part or install it into a critical machine, but dirt, debris and contaminants can cause problems for manufacturers and end users. From the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.
Ultrasonics: The ONLY Way to Clean Stainless Steel Pipe with Confidence
Regardless of the source of the dirt or contamination, AG Ultrasonic Cleaning Systems are designed to accommodate a wide variety of uses in diverse industries. Fast, effective and efficient, our machines will allow you to clean virtually any type of part or component. The following is just a short list of the many different types of items that have been cleaned using our systems.
ultrasonic tank models for your choice:
| Model | Tank size | Unit size | Volume | Ultrasonic power | Frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (kHz) | (KW) | (MIN) | (℃) | |
| T-12S | 500x300x250 | 640x440x470 | 38 | 600 | 28/40 | 1.5 | 1-99 |
0-80 |
| T-18S | 500x350x350 | 640x490x570 | 61 | 900 | 1.5 | |||
| T-24S | 550x400x400 | 690x540x620 | 88 | 1200 | 3 | |||
| T-30S | 600x450x400 | 740x590x620 | 108 | 1500 | 3 | |||
| T-36S | 600x500x450 | 740x640x670 | 135 | 1800 | 4.5 | |||
| T-48S | 700x500x500 | 840x640x720 | 175 | 2400 | 6 | |||
| T-60S | 800x600x550 | 940x740x770 | 264 | 3000 | 7.5 | |||
| T-72S | 1000x600x600 | 1140x740x820 | 360 | 3600 | 9 |
Main Features
1) Tank materail is SUS304 with 2mm thickness, Human hand argon welded, Sturdy and durable resistance to high tempearture
2) 50W industrial transducers, outstanding cleaning effects
3) External ultrasonic generator
4) Power adjustable, choose different power according to different cleaning objects
5) Digital timer: 1~99hours timer adjustable. continious working for long time.
6) With memory function, no need to reset time and temperature every time.
7) 20~80C adjustable, 9KW heating panel, faster cleaning
8) Industry use power cord, more safer.
9) Can bear 50~100KG cleaning objects
10) Accessories: Machine with stainless steel basket, drainage, lid, movable castors.
AGSONIC Ultrasonic cleaning is a fast and highly efficient way for cleaning automotive parts, our equipment will remove grease, oil, lubricants and many other contaminants that are commonly found on automotive components. This includes radiators, gearboxes, inter-coolers, brake callipers, carburettors, cylinder heads, paint guns and many more.
we have supplied our ultrasonic cleaning systems to numerous Motor Racing companies, Classic Car Restorers, professional garage as well as part-time enthusiasts.
Long Stainless Steel Round Tubes Ultrasonic Cleaning
are essential parts of every heating or cooling system whether they’re used in buildings or vehicles. Radiators facilitate the transfer of thermal energy from one medium to another, allowing the regulation of air temperature in a given space. Like any HVAC part, radiators tend to accumulate dust and dirt over time. When too much debris is present in the radiator, its performance is stunted and energy efficiency is negatively impacted.
Unlike most parts of an average heater or air conditioner, the radiator can be pretty sensitive to the force applied during cleaning. Too much force can damage it while too little can allow dirt to linger inside. To strike the perfect balance between effectiveness and safety, we recommend ultrasonic cleaning for Long Stainless Steel Round Tubes
INDUSTRIAL Ultrasonic machine Introduction
Ultrasonic cleaning is a technology that uses high frequency sound waves (ultrasonic: above the range of human hearing) to agitate an aqueous or organic medium (cleaning chemistry) that in turn acts on contaminations adhering to substrates like metals, plastics, glass, rubber and ceramics. Contaminants can be dust, dirty, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on
Why Use AGSONIC’s Ultrasonic Cleaning Systems?
The Advantages of AG Long Stainless Steel Round Tubes Ultrasonic Cleaning Machine
Ultrasonic cleaning machine delivers high performance industrial strength, cleaning action on Long Stainless Steel Round Tubes
01: Cleans carbon deposits from carburetors and all manner of engine parts
02: Removes stubborn oil grease, lubricants, paint, rust, and dirty (with-pre-cleaning in same cases
03: Aluminum sate
04: Penetrates deep into the Long Stainless Steel Round Tubes and cleans holes, small apertures and crevices
05: Clean sensitive parts like wiring and plastic without damage
06: Does not require line-of-sight for effective cleaning
07: Ensures Long Stainless Steel Round Tubes longevity due to high degree of cleanliness
AG Long Stainless Steel Round Tubes ultrasonic cleaning machine are revolutionizing cleaning methods and processes on the automotive and mechanic shop floor, our Engine block ultrasonic cleaning machine can clean all kinds of automotive,
LONG Ultrasonic Machine Cleaning Effect
