|Application:||Auto Parts Cleaning Machine||Heating Power:||3KW|
industrial ultrasonic cleaning machine,
industrial ultrasonic cleaning tanks

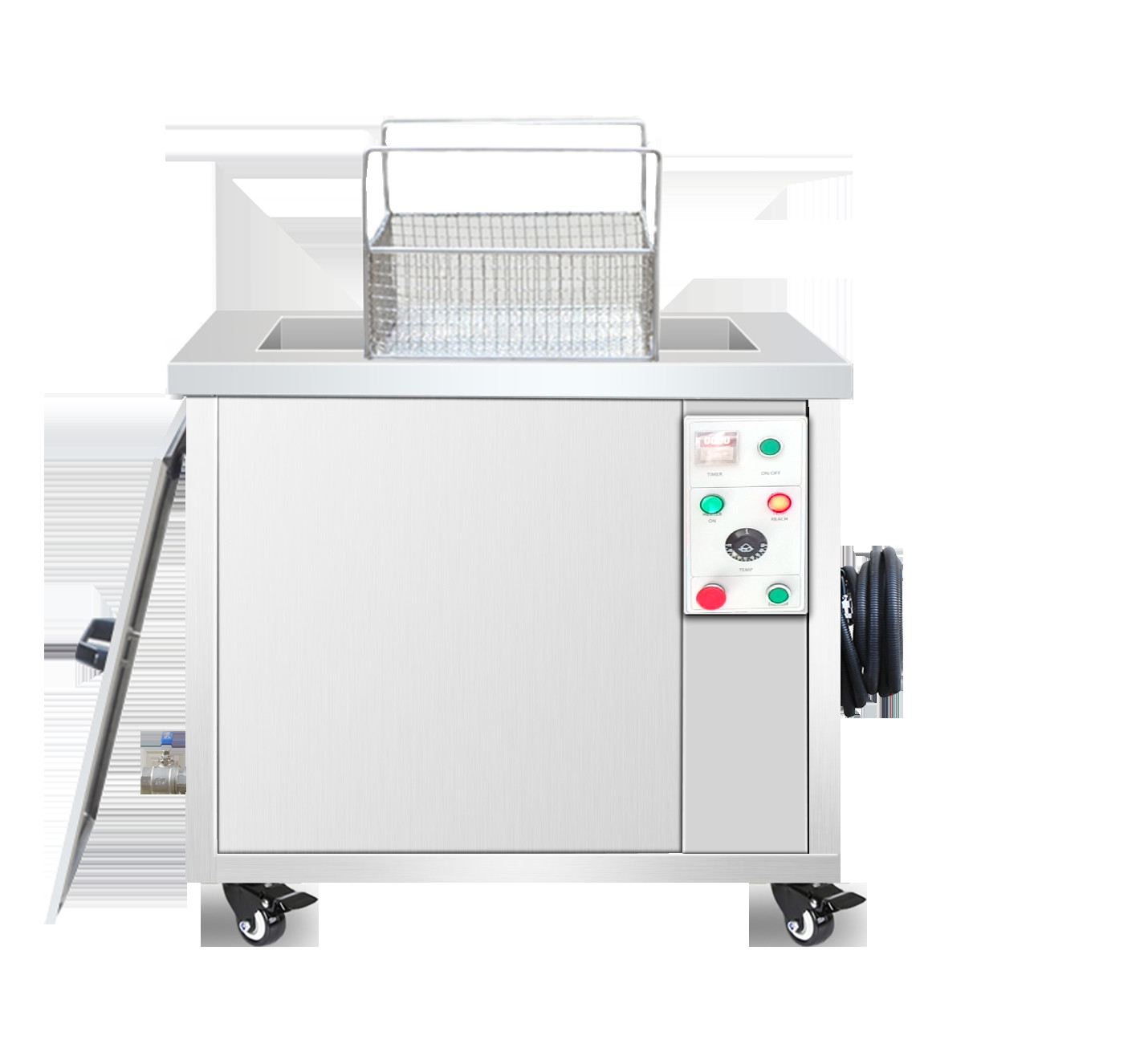

Large Ultrasonic Cleaning Tanks To Remove Oil Metal Dust And Remnants Coming From The Laser Steel Cutting Process
We are manufacturing and supplying of Automotive Ultrasonic Cleaners. We offer a wide range of ultrasonic cleaners. These are Single or Multistage Ultrasonic Cleaners, which are both manually operated & fully automated systems. Further, the machine is widely used and appreciated by our clients due to its professional dependability and user friendliness.
Cleaning With Sound Waves
While it may still sound futuristic to children of the ’60s and ’70s, ultrasonic cleaning has a long history of successful cleaning. Ultrasonics is the science of sound waves above the frequency normally considered audible for humans (above 18 Kilohertz). When vibrations at these high frequencies are introduced into liquids, areas of extremely high vacuum and extremely high pressure are generated alternately at any given point in the liquid as the sound waves pass.
Ultrasonic sound waves have been found to be an effective way to clean many automotive components, especially areas where it is difficult to reach with mechanical devices on complex parts such as automatic transmission parts, aluminum engine components with small oil galleys, blind holes and hidden cavities. Under the influence of a vacuum, the liquid is literally torn apart to create what is called a cavitation bubble. As positive pressure replaces the vacuum, which formed the cavitation bubble, it collapses in implosion resulting in high-pressure shock waves that, in turn, do all the work of scrubbing the component free from contaminants. Ultrasonic cleaning systems work very well on baked-on carbons and oils.
Ultrasonic Cleaning system Design:
Considerations in the design of any cleaning system include the contaminants on the part(s), the required cleanliness level, the geometry and material of the part(s), the quantity to be processed, and the previous system design and layout (if applicable). The part geometry, production rate, and cleaning time required will determine the size of the cleaning system, once the overall process has been decided
How does ultrasonic filter,engine Remove Oil Metal Dust cleaning work?
Don’t replace filters when they become clogged with dirt, grease or other contaminants; ultrasonic cleaners can restore many types of filters to look and function like new. Ultrasonic parts washers are particularly effective for filters made of metal or plastic mesh; the gentle yet powerful process is much less damaging than traditional cleaning methods that use a brush and high-velocity chemical cleaning solutions. Ultrasonic cleaners use water based solutions that won’t damage filters yet reach every crack and crevice for the best possible clean. Ultrasonic cleaning uses a process called cavitation where microscopic bubbles form from ultrasonic waves, then implode on the part’s components; thereby vigorously yet gently scrubbing and cleaning surfaces and crevices. No matter how stubborn the build-up, your filters will be restored to full working capacity.
Benefits of ultrasonics for auto part filters:
We know that your reputation depends on cleaning filters effectively and efficiently. Ultrasonics International can help you choose the right kind of ultrasonic cleaner, training and support that you need for your business needs.
For more than two decades, Ultrasonics International has helped businesses improve profitability by providing their clients with ultrasonic cleaning equipment that feature the latest advancements in wave sweep technology. Our ultrasonic cleaning equipment has a reputation for reliability and longevity. Utilizing the proper ultrasonic cleaning equipment saves money and improves cleaning processes. Cleaning results will be measurably better and less time will be required to complete the cleaning process. Production numbers go up and labor hours go down dramatically because multiple parts can be addressed simultaneously.
More suited for refurbishing in an ultrasonic filter cleaner are filters fabricated of metal or plastic mesh that capture and hold contaminants. An ultrasonic parts washer can be much more effective and less damaging than using a brush or high-velocity water sprays that no matter how diligently applied are not able to access all filters surfaces and may in fact damage the filter. Moreover an ultrasonic filter cleaner will cut filter cleaning time to minutes compared to the time required for manually cleaning filters.
Pls find more specifications below:
|Ultrasonic Tank Dimension(mm)||550X400X350||600X500X450||1000X600X600|
|Rinsing tank dimension(mm)||550X400X350||600X500X450||1000X600X600|
|Construction Case||SUS304 (Mirror shining image available)|
|Temperature range||20~80C adjustable|
|Lid & Basket||Available, material: SUS304|
|Cleaning Tank voltage||AC220V/AC380V 3phase|
|Generator Voltage||AC110V / 220V 1phase|
|Features||With double tank for cleaning and rinsing.
With filtration system
Multi-direction castors with brake;
1 year warranty
Q. "Which ultrasonic frequency would be most appropriate for my application?"
A. This depends upon many factors, including part size, contaminant, material of construction of the part, and others. Traditionally, the heavier the part, the lower the ultrasonic frequency in use. The more detailed the part, the higher the frequency which should be used. This is one of the advantages of our ultrasonic cleaner, which includes more than 1 frequency in the same tank. allows us to provide scrubbing power, without sacrificing penetration and detailed scrubbing action.
Remove Oil Metal Dust by ultrasonic cleaner
