| Place of Origin: | China |
|---|---|
| Brand Name: | Agsonic |
| Certification: | CE |
| Model Number: | T-120S |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 10-20days |
| Supply Ability: | 100pcs/month |
| Frequency: | 28KHZ/40KHZ/80khz | Timer: | 1S-99hours Adjustable |
|---|---|---|---|
| Heater: | 20-95℃ Adjustable | Sovent Recycle: | Heat Exchangers Cleaner |
| Use: | Degreasing | Mobility: | Engine Parts Cleaning |
| High Light: | industrial ultrasonic cleaning machine,industrial ultrasonic washing machine |
||

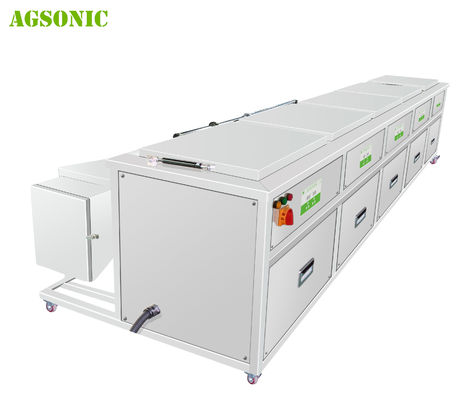

Sonic Wave Ultrasonic Wave Ultrasonic Cleaning Of Heat Exchangers Cleaner
Heat Exchangers are essential parts of every heating or cooling system whether they’re used in buildings or vehicles. Heat Exchangers facilitate the transfer of thermal energy from one medium to another, allowing the regulation of air temperature in a given space. Like any HVAC part, radiators tend to accumulate dust and dirt over time. When too much debris is present in the radiator, its performance is stunted and energy efficiency is negatively impacted.
Unlike most parts of an average heater or air conditioner, the radiator,Heat Exchangers can be pretty sensitive to the force applied during cleaning. Too much force can damage it while too little can allow dirt to linger inside. To strike the perfect balance between effectiveness and safety, we recommend ultrasonic cleaning for your radiator,Heat Exchangers
How Is Engine,Heat Exchangers Cleaning Machine cleaning :
This Ultrasonic Cleaning Method is long known as the "benchmark" in cleaning. Ultrasonic cavitation is able to clean right down to the surface of a part and beyond. It is also able to reach internal areas, which are not accessible by using other cleaning means including spray and mechanical agitation. The forceful nature of ultrasonic energy provides the physical "push" required to break the mechanical and ionic bonds that hold very small particles to surfaces.
Engine Cleaning Machine Cleaning all kinds Of Engine ,Heat Exchangers
Ultrasonic Cleaning of Engine Parts, Car engine parts, Truck engine parts and Motor bike engine parts
Our Ultrasonic cleaning process, can effectively clean the following components- Aluminum castings, engine blocks, Carburetors, Cylinder Heads, Engines, Engine Components, Gear Boxes, Filters, Tubes and Valves.
Welcome to Engine parts cleaning - Engine Parts Cleaning, Heat Exchangers,Car Engine Parts Cleaning, Truck Engine Parts Cleaning, Motor Bike Engine Parts Cleaning.
The Engine Parts,Heat Exchangers division specialises in the Ultrasonic Cleaning of Engine Parts, Car engine parts, Truck engine parts and Motor bike engine parts to both trade customers and individuals .
Our Ultrasonic cleaning process, can effectively clean the following components- Aluminum castings, engine blocks, Carburetors, Cylinder Heads, Engines, Engine Components, Gear Boxes, Filters, Tubes and Valves.
AG Engine block ,Engine Parts,Heat Exchangers ultrasonic cleaning machine are revolutionizing cleaning methods and processes on the automotive and mechanic shop floor, our Engine block ultrasonic cleaning machine can clean all kinds of automotive, aircraft, and marine engine parts, ultrasonic technology for cleaning parts eliminates manual labor while providing you with superior cleaning action, most parts can be cleaned with environmentally friendly water-based solutions
Ultrasonic cleaning machines work on the principle of agitating cleaning solvents using high frequency sound waves, the ultrasonic agitation creates millions of microscopic bubbles that implode releasing vast quantities of energy, this action, know as cavitations, dislodges any contaminant stuck to the surface of a part, ultrasonic cavitations thoroughly cleans every surface in contact with the cleaning fluid
Pls find most Popular Engine Cleaning Machine specifications below:
| Specification | AGSONIC | |
| Make | China | |
| Model | T-6144S | T-1200S |
| Tank Capacity (l) | 6144 | 1200 |
| Built Material | SS 316 | SS 316 |
| External Dimension | 3.3x2.1x1.9 | 1.65x1.4x1.3 |
| Useful Dimension lbh (m) | 2.4 x 1.6 x 1.6 | 1.1 x 1.1 x 1 |
| Electrical Heating Power (KW) | 150KW | 30KW |
| Heater ('C) | 20-100C Adjust | 20-100C Adjust |
| Insulation Yes/no | Yes | Yes |
| Hydraulic Agitation yes/No | No | No |
| Max Load (Kg) | 5000kgs | 1000kgs |
| Ultrasonic Power (KW) | 46.8 | 10.8 |
| Ultrasonic Frequency (KHz) | 28 | 28 |
| No. of Transducer Sets | 26 set submersible pack ( 936 pcs transducer) | 6 set submersible pack (216pcs transducer ) |
| Placement of vibrator plates | 2 side wall mounted with handle (each side 13set vibrator plated) | Bottom Mounted 6 set vibrator plated |
| Noice Level | Special basket / | With basket / |
| Voltage (V) | 380-415V 3 phase | 380-415 V 3phase |
| Timer (mins) | 1-99hours adjust | 1-99hours adjustr |
Other models for your choice:
| Model | Tank size | Unit size | Volume | Ultrasonic power | Frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (kHz) | (KW) | (MIN) | (℃) | |
| T-12S | 500x300x250 | 640x440x470 | 38 | 600 | 28/40 | 1.5 | 1-99 |
0-80 |
| T-18S | 500x350x350 | 640x490x570 | 61 | 900 | 1.5 | |||
| T-24S | 550x400x400 | 690x540x620 | 88 | 1200 | 3 | |||
| T-30S | 600x450x400 | 740x590x620 | 108 | 1500 | 3 | |||
| T-36S | 600x500x450 | 740x640x670 | 135 | 1800 | 4.5 | |||
| T-48S | 700x500x500 | 840x640x720 | 175 | 2400 | 6 | |||
| T-60S | 800x600x550 | 940x740x770 | 264 | 3000 | 7.5 |
Engine Parts ,Engine Parts,Heat Exchangers Ultrasonic Machine Woring In Workshop
Ultrasonic cleaner machine Wide application :
| Industry | Cleaning objects |
| jewelry | Jewelry, diamond, gold, silver products, |
| machinery | Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools |
| electronics | PCB board, electronic parts, TV parts, computer parts |
| Auto industry | engine parts, gear box, shock absorber, auto nozzle, cylinder, valve |
| Dental& Medical | dental tools, medical tools, injector, surgery tools, dropper, glass container |
| Plating& painting | polishing parts, SUS cutter, tableware, plating |
| Food industry | Oven tray, boiler, bottles, bottle cap, filters |
| Optical& watch maker | optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand |
| textile | spinneret plate, rubber parts, plastic molds, toy |
| others | seal, flapper, coins, pottery, bank card, IGBT |
How Ultrasonic Cleaners For Car Engine Work?
Ultrasonic cleaner for auto parts consists of a wide stainless steel tank which can hold safe and biodegradable ultrasonic cleaning solution for advanced cleaning results.
When the device is turned On, the powerful transducer in the machine develop millions of microscopic bubbles in the cleaning solution. These bubbles implode with tremendous force by contacting the car engine parts. And in the process all type of grease, dirt, grime, and carbon deposit is stripped off completely without any damages.
After completing the cleaning process, you need to rinse and dry off the auto parts to make it ready for re-assembling. Overall, making use of ultrasonic cleaners makes your job easy and fast. You should get one now if you do not use it yet for cleaning car engine parts.
Although there are many smaller versions of ultrasonic cleaner for car engine parts available in the market, an ultrasonic cleaner with bigger tank is mostly preferred for professional cleaning and repairing. This will help you to use the cleaner for cleaning various bigger engine parts with much ease
Q. "Which ultrasonic frequency would be most appropriate for my application?"
A. This depends upon many factors, including part size, contaminant, material of construction of the part, and others. Traditionally, the heavier the part, the lower the ultrasonic frequency in use. The more detailed the part, the higher the frequency which should be used. This is one of the advantages of our ultrasonic cleaner, which includes more than 1 frequency in the same tank. allows us to provide scrubbing power, without sacrificing penetration and detailed scrubbing action.
Large Ultrasonic Cleaner Production
Heat Exchangers Cleaner Ultrasonic Cleaning Effect
.
