|Tank Capacity:||260L*2||Tank Size:||730*450*760|
|Parts 1:||Basket||Parts 2:||Lid|
|Parts 3:||Filtration System||Warranty:||1 Year|
|Timer:||1-99min Adjustable||Heater:||20-80c Adjustable|
industrial ultrasonic cleaning machine,
industrial ultrasonic cleaning tanks

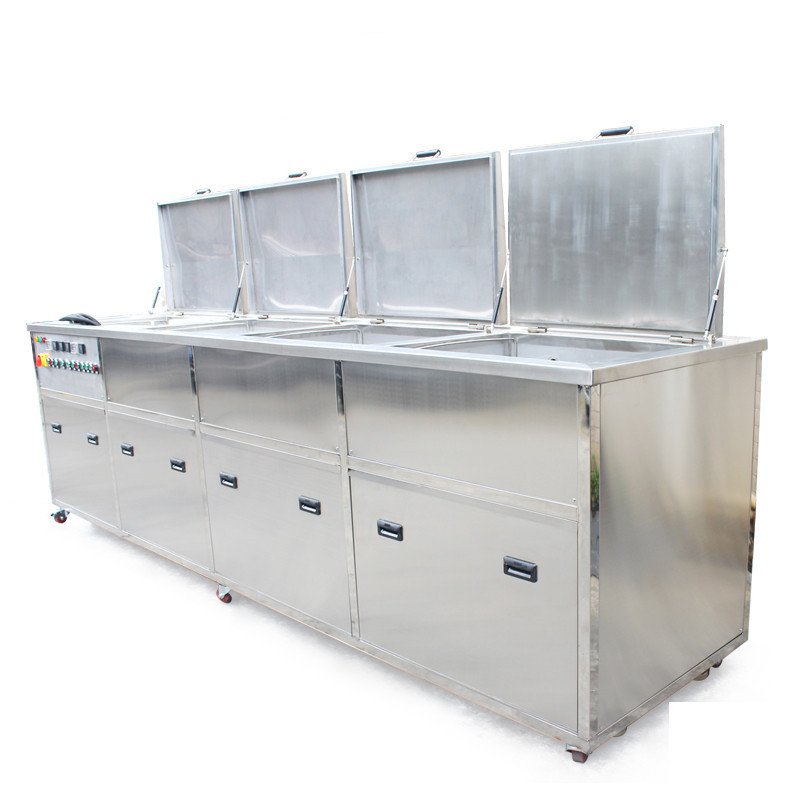

Molds Die Mold Industrial Cleaning Equipments With Vibration Ultrasonic Cleaning Rinsing 28KHZ
Plastic Mold Cleaning by Cavitation Action
Cavitation action is described as the implosion of countless minute bubbles against surfaces of products immersed in the cleaning solution. Bubbles are created when generator-powered transducers bonded to the ultrasonic cleaner tank vibrate at ultrasonic frequencies measured in thousands of cycles per second or kilohertz (kHz).
Selecting the cleaning equipment is governed to a large extent by the size of molds being cleaned. Ultrasonic cleaners are available ranging from small benchtop units to industrial-sized floor-mounted equipment that can be fitted for automated cleaning and rinsing cycles. But do select a cleaner with a heater, timer and sweep mode.
The process is fairly straightforward regardless of equipment size. Here’s a simplified description that can be modified based on your specific operations:
Rinsing tip: You’ll want to thoroughly remove cleaning solution residues. Complex shapes may call for a spray rinse or, in certain cases, rinsing by cavitation in an ultrasonic rinse tank.
How to Clean Large Plastic Injection Molds
Complex molds require careful cleaning.
Complex injection molds represent substantial investments by plastic injection molding companies which, in order to protect their investments, must establish cleaning procedures to remove a variety of stubborn contaminants. These include burned on residues, oils, flashing and grease that if allowed to remain will result in product rejection by the quality control department. Hand scrubbing with solvents simply does not do the job. In addition to being time consuming, manual cleaning introduces potential health hazards for personnel and solvent disposal challenges. The solution is using an ultrasonic cleaner instead of scrubbing in a solvent-based parts washer.
Why an Ultrasonic Cleaner is Ideal for Injection Molding
In three words: thorough, safe and fast. Contaminants missed by manual cleaning are usually those deep in crevices and on other surfaces impossible to reach. Moreover, highly finished mold surfaces can be scratched or otherwise damaged by manual processes. Large molds can be difficult to maneuver, further risking damage during manual cleaning. And the longer it takes to clean the molds the greater the risk of damage.
Ultrasonic cleaning action solves all three issues.
It is thorough because it reaches all mold surfaces immersed in a biodegradable water-based ultrasonic cleaning solution. It is safe because while the cleaning action can be termed “violent” it occurs so fast that highly polished injection mold surfaces are not damaged during the cleaning process. By fast we mean 10 to 15 minutes although large complex molds may require a longer cleaning cycle.
Ultrasonics: The ONLY Way to Clean with Confidence
Regardless of the source of the dirt or contamination, AG Ultrasonic Cleaning Systems are designed to accommodate a wide variety of uses in diverse industries. Fast, effective and efficient, our machines will allow you to clean virtually any type of part or component. The following is just a short list of the many different types of items that have been cleaned using our systems.
3 Tank Injection Molds, Blow Molds Ultrasonic Cleaning Machine With Each Tank's Dimension 1000*700*700mm
|Ultrasonic tank size(mm)||730 x 480 x 760 mm|
|Rinsing tank size(mm)||730 x 480 x h760|
|Ultrasonic frequency||28khz or 40khz|
|Material||Stainless steel 304|
|Power supply||AC220V, 3phase , AC380V/415V 3phase|
ultrasonic tank models for your choice:
|Model||Tank size||Unit size||Volume||Ultrasonic power||Frequency||Heating power||Timer||Heating temperature|
1) Tank materail is SUS304 with 2mm thickness, Human hand argon welded, Sturdy and durable resistance to high tempearture
2) 50W industrial transducers, outstanding cleaning effects
3) External ultrasonic generator
4) Power adjustable, choose different power according to different cleaning objects
5) Digital timer: 1~99hours timer adjustable. continious working for long time.
6) With memory function, no need to reset time and temperature every time.
7) 20~80C adjustable, 9KW heating panel, faster cleaning
8) Industry use power cord, more safer.
9) Can bear 50~100KG cleaning objects
10) Accessories: Machine with stainless steel basket, drainage, lid, movable castors.
Large Ultrasonic Cleaners
AGSONIC Ultrasonics manufactures large ultrasonic cleaners for the cleaning of heavy and big components with light or heavy contamination. Large tanks are usually required to clean parts such as:
Plastic Injection Molds
Large batches of smaller parts
Bulk rebuilding of firearms
Q. "How do I dispose of the waste fluids generated by the ultrasonic cleaner?"
A. In the case of a smaller manufacturer, the cleaning fluids can be collected and disposed of as oily detergent waste. However, many AGSONIC customers are successfully using Wastewater Evaporators to eliminate the waste which is generated by the ultrasonic cleaner. Since ultrasonic cleaning fluid is typically 95% water, this portion of the waste is evaporated. The 5% balance of the waste collects as a sludge in a collection tank which is later disposed of by traditional means. AGSONIC can supply wastewater evaporators to drastically reduce the amount of waste material which requires disposal.
What do I need to consider when purchasing a large ultrasonic cleaner?
When dealing with large liquid volumes and ultrasonic cleaners, there are several considerations:
Tank Integrity: The tank needs to be able to withstand the pressure of the liquids and the weight of the parts being cleaned. This requires a specific tank design that moves the stress points away from welded edges.
Ultrasonic Power: There needs to be enough ultrasonic power to provide the cleaning performance you need.
Ultrasonic Frequency: The frequency chosen will usually be in the low frequency range when cleaning heavy parts, or AGSONIC's patentedCROSSFIREMultiple Frequency Ultrasonic System operating at 25 and 40kHz.
Heating Systems: Large tanks may require extended time to heat to operational temperatures due to the large liquid volume in the tank.
Filtration Systems: Need to be large enough to remove the dirt being removed from the parts, and push to dirt towards to filter system suction port. Filter housings and pumps need to be larger.
High-volume Oil Skimming: When removing greases and oils, a high volume oil skimmer with the ability to isolate surface oils from the cleaning tank is needed to prevent oils from re-depositing onto parts when they are removed.
Blow Molds Ultrasonic Cleaning Machine Cleaning Effect
