| Place of Origin: | China |
|---|---|
| Brand Name: | Agsonic |
| Certification: | CE |
| Model Number: | AG1108 |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 10-20days |
| Supply Ability: | 100pcs/month |
| Frequency: | 28KHZ/40KHZ/80khz | Drying: | 1 Drying Tank |
|---|---|---|---|
| Tank Design: | 3 Ultrasonic Washing Tank | Heater: | 20-95℃ Adjustable |
| Basket: | Including | Automatic: | Automatic System Optional |
| Sovent Recycle: | Filter System Optional To Move Oil | Use: | Degreasing |
| Mobility: | Ceramic Car DPF Cleaner | ||
| High Light: | industrial ultrasonic cleaning machine,industrial ultrasonic cleaning tanks |
||
Our multi tank ultrasonic cleaning systems combined with the hot air dryer can be used as an effective part cleaning line by housing heated cleaning solution, cascading DI rinse water, and a final cascading DI rinse water with a final hot air dry step. The process would move from left to right: the parts would be cleaned, rinsed, rinsed and then dried.
The clean tank can be optionally equipped with pump filter systems which provide 5 micron filtration of the alkaline cleaning passivation solution. The common configuration shown is 3.5 gallon tanks, but any size tanks can be used in similar configuration use.
Ideal to clean rust,carbon,pait,heavy oil,fruit agricultural chemicals and other things hard to clean, without damage to parts inside tank.
Industrial ultrasonic cleaning mahine with filtration system, remove heavy oil from the surface.
Avoid re-pollution for your goods.
Liquid cycle can save cost and improve efficiency.
Structural Features: ultrasonic cleaning+ ultrasonic rinse + rinse + dry, continuous operation.
Control Features: ultrasonic cleaning control, heating control temperature.
Electrical Characteristics: split electrical control cabinet, ultrasound and rinsing can be sub-control air-dried.
Application Features: suitable for continuous cleaning; Cleaning, rinsing and drying can be completed
Machine equipment system includes replaceable transducer box and generator. The transducer box and generator can be both build-in or separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load. Specification of tank dimension and transducer boxes are custom made available. Either for mould of parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.
Application in Diesel Particulate Filter washing car part and metel part as below.
Automatic manufacturing semi-product and product cleaning
Automatic repair cleaning including engine,gear box,connecting rod,oil pump,crust,disc break,turbo supercharger,fuel injector,gearing,bearing and other components
Cleaning product after processing by boring and grinding machines
Ideal for car parts washing, engine block cleaning,workshop sonic bath cleaning.
Ideal to clean rust,carbon,pait,heavy oil, without damage to parts inside tank with suitable cleaning liquid.

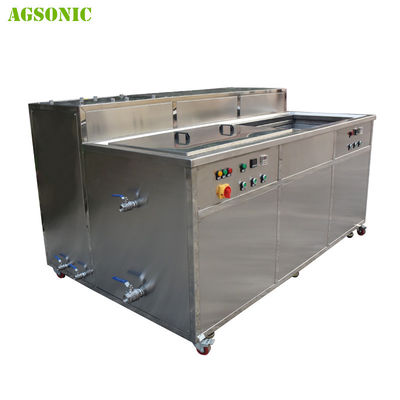

AGsonic 3 stage unit (multi-tank) ultrasonic cleaner machine
| Industry | Cleaning objects |
| jewelry | Jewelry, diamond, gold, silver products, |
| machinery | Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools |
| electronics | PCB board, electronic parts, TV parts, computer parts |
| Auto industry | engine parts, gear box, shock absorber, auto nozzle, cylinder, valve |
| Dental& Medical | dental tools, medical tools, injector, surgery tools, dropper, glass container |
| Plating& painting | polishing parts, SUS cutter, tableware, plating |
| Food industry | Oven tray, boiler, bottles, bottle cap, filters |
| Optical& watch maker | optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand |
| textile | spinneret plate, rubber parts, plastic molds, toy |
| others | seal, flapper, coins, pottery, bank card, IGBT |
AGsonic make rinsing tanks and dryer tanks to dryer after rinsing, such as for tank capacity of 50L,100L,150L,200L or even bigger tank. Multi tanks with different functions by each unit work together to approach maximum cleaning efficiency.
Take 3-tank ultrasonic cleaner as example:
1st ultrasonic cleaning tank
2nd rinsing tank after rinsing(or add a second rinsing tank for thorough rinsing)
3rd dryer tank
Specification details as follows:
1st ultrasonic tank: installed with ultrasonic cleaning transducers to operate cleaning process by ultrasonic transducer vibration.
2nd Rinsing tank: It has a continues supply of water by supplying water from the bottom, and dirty liquid flow away from the surface of the liquid.
Specification details:
| Model | T-2048G | T-2072G | T-2144G |
| Ultrasonic Tank Dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
| Rinsing tank dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
| Max. Capacity | 77L/tank | 135L/tank | 175L/tank |
| Construction Case | SUS304 (Mirror shining image available) | ||
| Construnction Tank | SUS304 | ||
| Transducer Number | 48pcs | 72pcs | 144pcs |
| Ultrasonic power(Max.) | 2400W | 3600W | 7200W |
| Ultrasonic frequency | 40kHz | 40kHz | 40kHz |
| Temperature range | 20~80C adjustable | ||
| Heating power | 6KW | 12KW | 24KW |
| Timer | 1~99h | 1~99h | 1~99h |
| Drain | 3/4" Valve | ||
| Lid & Basket | Available, material: SUS304 | ||
| Cleaning Tank voltage | AC220V/AC380V 3phase | ||
| Generator Voltage | AC110V / 220V 1phase | ||
| Features | With double tank for cleaning and rinsing. With filtration system Multi-direction castors with brake; 1 year warranty |
||
Competitive Advantage:
FAQ:
Ultrasonic cleaner for car parts cleaning is one of the best designed and most essential tool for auto mechanic.
With a high quality ultrasonic cleaning equipment in a garage, all the cleaning tasks can now be completed in a matter of few minutes, which actually required few hours.
Overall, the process is made quick, safe and professional when an ultrasonic cleaning device is being used for cleaning these automotive parts.
The best thing about using these ultrasonic cleaning systems is, you are free to go and complete your other productive tasks when the cleaning task is being done professionally by an automated machine. You can come back after a while and pick the cleaned parts when they are ready to assemble.
