| Place of Origin: | China |
|---|---|
| Brand Name: | AG SONIC |
| Certification: | CE |
| Model Number: | T-3072G |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | 1unit/wooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300units/month |
| Tank Material: | SUS304/SUS316L | Tank Size: | 600X500X450mm |
|---|---|---|---|
| Frequency: | 28khz Suggested | Ultrasonic Power: | 1800W |
| Heating Power: | 9KW | Warranty: | 1 Year |
| High Light: | SUS316L Ultrasonic Cleaning Machine,135L Ultrasonic Cleaning Machine,FCC Plastic Instruments Ultrasonic Cleaner |
||

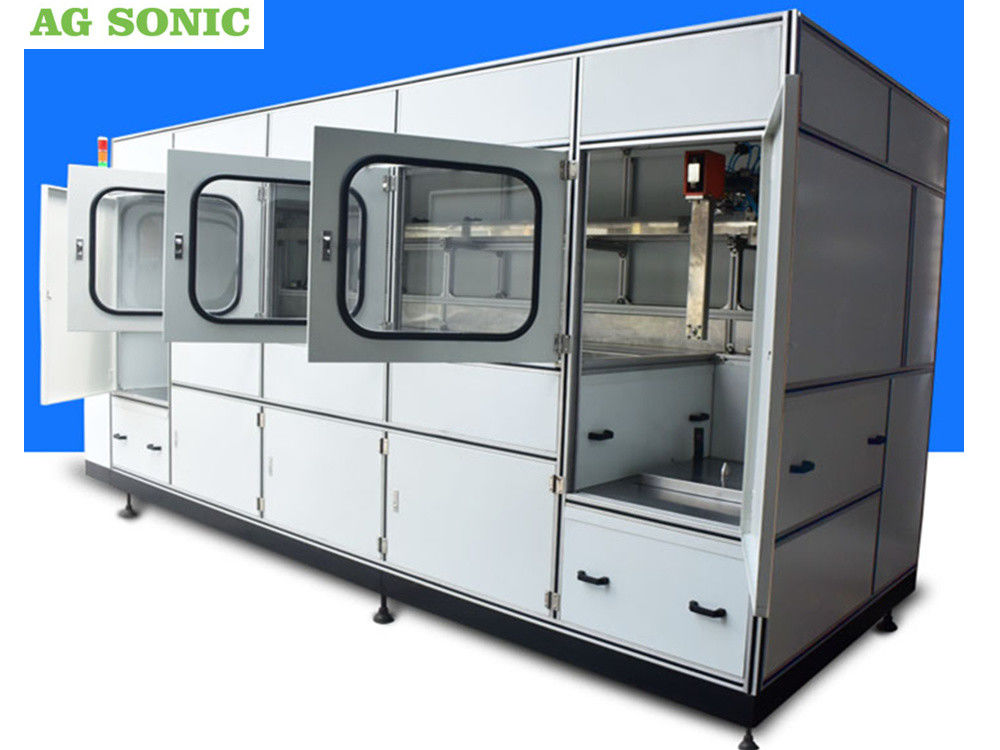

Full Automatic Ultrasonic Cleaning Machine Line For Plastic Instruments
System Design Features:
· Available in Several Standard Configurations. Standard Systems can be Manufactured to Meet Any 5-stage Processing Need.
· Most parts are Internally Mounted for Cleaner Exterior Appearance.
· All Components are Easily Accessed for Maintenance Operations.
· Available with Multiple Frequency Ultrasonic Systems.
· Digital Control Enclosure Provides Ease of Operation while Eliminating Potential Corrosion.
· Stainless Steel Construction.
· 38" Working Height.
Filtration System and Digital Ultrasonic Timer Included as Standard Equipment
pecification
| Model | T-3072G |
| 1st Tank Volume | 135L Ultrasonic Cleaning tank with filtration cycle system |
| 2nd Tank Volume | 135L Ultrasonic Rinsng tank |
| 3rd Tank Volume | 135L Drying tank |
| 1st tank size | 600X500X450mm |
| 2nd tank size | 600X500X450mm |
| 3rd Tank size | 600X500X450mm |
| Transducers | 36pcs in 1st tank; 36pcs in 2nd tank |
| Ultrasonic Power | 1800W*2 |
| Heating Power of Ultrasonic tank | 4500W*2 |
| Heating Power of Drying tank | 750W |
| Frenquency | 28KHz/40KHz |
| Drying System | 1 set |
| Unit size | 2460*1310*1050mm |
| Packing size | 2520*1370*1170mm |
| Timer | 0~99 minutes adjustable |
| Heater | Room temperature~99℃ adjustable |
| Material | SUS 304 default, can be SUS 316 |
| Power Supply | AC 220V 3 phase ; AC 380V 3 phase |
| N.W. | 370G |
| G.W. | 400KG Wrapped by film in wooden case |
| Lead time | 18 working days |
| Warranty | 1 year warranty period, technique support all time |
| Certificates | CE, RoHS, FCC, SGS |
| Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Cleaning process modules - Flexible process configuration, optimal cleaning result
Ultrasonic cleaning line is configured out of washing, rinsing and drying modules and their options. The scope can range from a single manually operated unit to a fully automatic multi-stage line. The basic module is a treatment tank. sets new standards for module design. Thoughtful details in fluid connections, agitation and control features give you a more functional, flexible and energy efficient process.
