| Place of Origin: | China |
|---|---|
| Brand Name: | AG SONIC |
| Certification: | CE |
| Model Number: | T-4072 |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | 1unit/wooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300units/month |
| Tank Material: | SUS304/SUS316L | Tank Size: | 550X400X350mm |
|---|---|---|---|
| Frequency: | 40khz Suggested | Ultrasonic Power: | 1200W |
| Heating Power: | 3KW | Warranty: | 1 Year |
| High Light: | 1200W Ultrasonic Parts Cleaner,40khz Ultrasonic Parts Cleaner,SUS316L Ultrasonic Cleaning Machine |
||

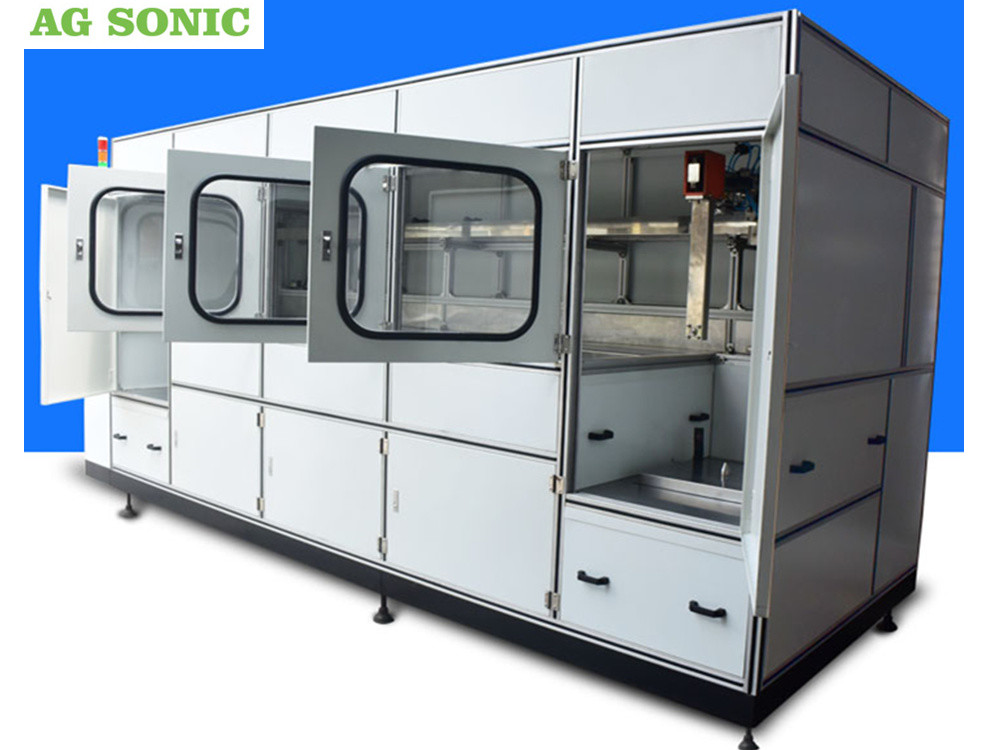

Mechanical Arm Full-Automatic Cleaner For Mobile Surgical Instrument
Cleaning Process
1 ULTRASONIC CLEANING
Our powerful cavitation will loosen dirt on parts. Bath includes water and specific detergent (5-15%) for each application. Heating up to 90ºC increases overall performance.
2 WATER RINSE
Rinsing is as important as cleaning. It will remove detergent and remaining dirt from parts. Air bubbling jets increase rinsing effectiveness. Water must be keep clean, so active carbon filter is highly recommended.
3 ADDITIONAL WATER RINSE STAGES
Number of additional rinse steps in reverse cascade arrangement will be determined according to cleanliness level requirements. Use of pure demineralized water at final rinsing stage will allow best final results.
4 PARTS PROTECTION
Passivation agents bath will protect your parts against corrosion. A complete range of products is available depending on customer parts material and temporal protection range desired.
5 DRYING Hot air cyclone chamber quickly removes water from just cleaned parts, so they are ready to continue their manufacturing process. Proper thermal insulation ensures lowest electrical consumption.
Arm Full-Automatic Cleaner Ultrasonic Specification
| Model | T-5024S |
| 1st -5tanks Tank Volume | 77L |
| First -5tank size | 550X400X350mm |
| Transducers | 24pcs 50W of every transducer |
| Ultrasonic Power | 1200W |
| Heating Power of Ultrasonic tank | 3000W |
| Heating Power of Drying tank | 750W |
| Frequency | 28KHz/40KHz |
| Drying System | 1 set connected with 2d tank |
| Filtration cycle system | 1 set connected with 1st tank |
| Unit size | 1550*1050*950mm |
| Packing size | 1610*1110*1070mm |
| Timer | 0~99 minutes adjustable |
| Heater | Room temperature~99℃ adjustable |
| Material | SUS 304 default, can be SUS 316 |
| Power Supply | AC 220V 3 phase ; AC 380V 3 phase |
| N.W. | 230G |
| G.W. | 260KG Wrapped by film in wooden case |
| Lead time | 18 working days |
| Warranty | 1 year warranty period, technique support all time |
| Certificates | CE, RoHS, FCC, |
| Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Optional
Pneumatic or hydraulic platform lift for parts swing to increase effectiveness while cleaning or rinsing stages.
Cartridge or bag filtration for ultrasonic tank.
Automatic water refilling.
Automatic Liquid Detergent Dosing System .
Detergent preparation (pre-mix) tank.
Automatic Oil Separation for US tank.
Air bubbling or water jets for rinsing tanks.
Active carbon filtering for rinsing stages.
Sprinklers system for parts rinsing while being extracted.
Osmosis plant for demineralized water generation for final rinsing stages.
Safety enclosure for loading system.
Customized basket and lifting beams.
Steam extraction to ensure healthy plant environment.
Loading/unloading conveyors, manual or motorized.
Ultrasonic sets at rinsing stages for special applications.
