| Place of Origin: | China |
|---|---|
| Brand Name: | AG SONIC |
| Certification: | CE |
| Model Number: | T-72S |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | 1unit/wooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300units/month |
| Application: | Industrial Ultrasonic Cleaner | Ultrasonic Power: | 3600W |
|---|---|---|---|
| Heating Power: | 9KW | Control: | External Generators |
| Tank Material: | SUS304/SUS316L | Used: | Filter Cleaning |
| High Light: | Dpf SUS316L Industrial Ultrasonic Cleaner,9KW SUS316L Industrial Ultrasonic Cleaner,220V Dpf Ultrasonic Cleaning Machine |
||

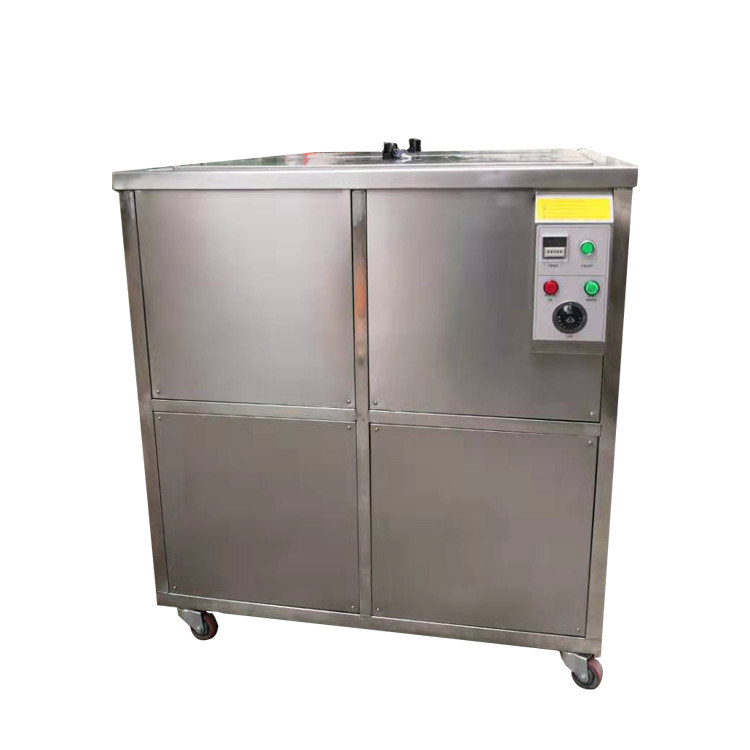

360l ultrasonic cleaning machine for dpf cleaning with filtration system industrial ultrasonic cleaner
Why clean parts with ultrasonic?
Delivering and using clean parts is not always obvious, certainly, no one wants to handle a dirty parts or install it into a critical machine, but, dirty, debris and contaminants can cause problems for manufactures and end users, from the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.
Pls find more specifications below:
| Specifications for ultrasonic cleaner T-72S | |
| Model | T-72S |
| Tank capacity | 360L |
| Tank size | 1000x600x600mm |
| Unit size | 1140x740x820mm |
| Tank material | 2mm SUS304 |
| Ultrasonic power | 3600W |
| Heating power | 9KW |
| Timer | 1-99min adjustable |
| Heater | 0-80c adjustable |
| Frequency | 28/40khz |
| Control | External generator, more stable |
| Optional | Oil filter system, pneumatic lift, rinsing tank, etc. |
| Voltage | 110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases |
| Warranty | 1 year |
| Packing | 1unit/wooden case |
Other models for your choice:
| Model | Tank size | Unit size | Volume | Ultrasonic power | Frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (kHz) | (KW) | (MIN) | (℃) | |
| T-12S | 500x300x250 | 640x440x470 | 38 | 600 | 28/40 | 1.5 | 1-99 |
0-80 |
| T-18S | 500x350x350 | 640x490x570 | 61 | 900 | 1.5 | |||
| T-24S | 550x400x400 | 690x540x620 | 88 | 1200 | 3 | |||
| T-30S | 600x450x400 | 740x590x620 | 108 | 1500 | 3 | |||
| T-36S | 600x500x450 | 740x640x670 | 135 | 1800 | 4.5 | |||
| T-48S | 700x500x500 | 840x640x720 | 175 | 2400 | 6 | |||
| T-60S | 800x600x550 | 940x740x770 | 264 | 3000 | 7.5 | |||
| T-72S | 1000x600x600 | 1140x740x820 | 360 | 3600 | 9 |
Application of ultrasonic cleaner:
Car service: Flushing carburetors, injectors, injectors, fuel filter meshcleaning (petrol), individual parts, assemblies, and entire blocks.
Medicine: Washing and polishing of optics, sterilization and cleaning ofsurgical instruments, vials, dental and pharmaceutical industries; cleanerreusable, molds.
Engineering:Cleaning of parts, pipes, wires, etc. before finishing, machiningparts and components to the preservation, processing of parts afterreopening, welding, grinding, polishing, cleaning strainers in the fueland hydraulic systems, deburring parts.
Instrumentation:Washing and polishing of optics, precision mechanics components,integrated circuits and printed circuit boards.
ultrasonic cleaner advanage
*Ultrasonic Cleaning machines saves a lot of time
*Save a lot of manual effort
*Helps with achieving same results every time
*Less combursome process
*Save a lot of consumables like water and electricity
*Makes product ready for WD Autoclave in next stage
*Increases shelf life of instruments
*Reduces chances of cross contamination
