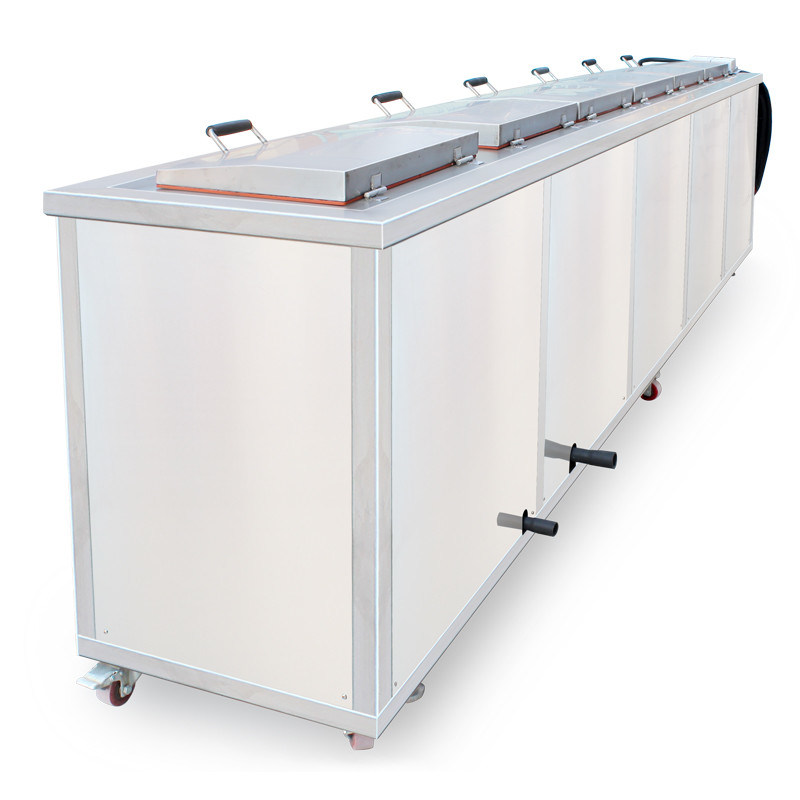

135L SUS304 Ultrasonic Cleaning Machine For Plastic Instruments

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: T-3072G
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 300units/month
Tank Material: SUS304/SUS316L Tank Size: 600X500X450mm
Frequency: 28khz Suggested Ultrasonic Power: 1800Watt
Heating Power: 9KWatt Name: Ultrasonic Cleaning Machine
High Light:

135L Ultrasonic Cleaning Machine

,

SUS304 Ultrasonic Cleaning Machine

,

135L automatic ultrasonic cleaner



Full Automatic Ultrasonic Cleaning Machine Line For Plastic Instruments



System Design Features:

· Available in Several Standard Configurations. Standard Systems can be Manufactured to Meet Any 5-stage Processing Need.

· Most parts are Internally Mounted for Cleaner Exterior Appearance.

· All Components are Easily Accessed for Maintenance Operations.

· Available with Multiple Frequency Ultrasonic Systems.

· Digital Control Enclosure Provides Ease of Operation while Eliminating Potential Corrosion.

· Stainless Steel Construction.

· 38" Working Height.

Filtration System and Digital Ultrasonic Timer Included as Standard Equipment



pecification

Model T-3072G
1st Tank Volume 135L Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 135L Ultrasonic Rinsng tank
3rd Tank Volume 135L Drying tank
1st tank size 600X500X450mm
2nd tank size 600X500X450mm
3rd Tank size 600X500X450mm
Transducers 36pcs in 1st tank; 36pcs in 2nd tank
Ultrasonic Power 1800W*2
Heating Power of Ultrasonic tank 4500W*2
Heating Power of Drying tank 750W
Frenquency 28KHz/40KHz
Drying System 1 set
Unit size 2460*1310*1050mm
Packing size 2520*1370*1170mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 370G
G.W. 400KG Wrapped by film in wooden case
Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Cleaning process modules - Flexible process configuration, optimal cleaning result



Ultrasonic cleaning line is configured out of washing, rinsing and drying modules and their options. The scope can range from a single manually operated unit to a fully automatic multi-stage line. The basic module is a treatment tank. sets new standards for module design. Thoughtful details in fluid connections, agitation and control features give you a more functional, flexible and energy efficient process.
