|Material:||Stainless Steel 304||Application:||Precision Industrial Ultrasonic Cleaner|
|Option:||Drying Chamber||Function:||Rinse Dry Consoles|
|Ultrasonic Power:||3600W||Heating Power:||9KW|
industrial ultrasonic cleaning tanks,
industrial ultrasonic cleaning system

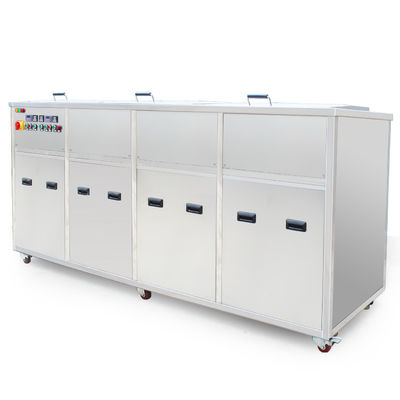

Precision Industrial Ultrasonic Cleaning Machine For Zero Residue Cleaning
Precision Industrial Ultrasonic Cleaner Clean / Rinse Dry Consoles For Zero Residue Cleaning
Multi Stage Precision Ultrasonic Cleaners
Precision Cleaning Power is faster, more consistent and safer than many other methods. It is powerful enough to remove heavy oils, buffing compounds, or proteins, consistent enough to manage difficult laboratory cleaning every time and safe enough for delicate electronic components or fine jewellery.
Ultrasonic sound waves moving through a cleaning solution create an effect called cavitation, the rapid formation and collapse of microscopic bubbles. This violent collapse, along with the cleaning chemistry, scrubs every wetted surface.
The deep cleaning action of ultrasonics removes the most stubborn contamination, even from blind holes and internal surfaces.
HEAT enhances this process.
The AGsonic cleaners now include the same high power, rugged transducers fitted on industrial systems. Coupled with a unique sweep frequency capability, to eliminate standing waves and create even cleaning, providing the best cleaning every time.
Why Use Ultrasonic Cleaner
The current practice involves use of chlorinated solvents like TCE, PCE etc. that are the choice solvent used through the industries in their cleaning process. Aqueous Ultrasonic Cleaning System are very popular due to their good solvency, lower heat of evaporation, high or absence of flash point, non-corrosive nature, relative stability & compatibility with metals & glass. However all chlorinated solvents are hazardous to human health & environment.Some chlorinated solvents are suspected to cause cancer (Carcinogenic) over prolong exposure. Being hazardous to health their usage has come under intense investigation from pollution control & health authorities & has already been banned by developed countries. This has lead to shift to alternative cleaning technology based on aqueous solvents.
We are one of the leading manufacturers and suppliers of an array of Semi Automatic Cleaning Systems. Known for their low noise and smooth operation, these are widely considered among the customers we have. Available in different types depending upon the production rate, these conveyors are acknowledged for high load bearing capacity and sturdy construction. We also undertake customization of this range to meet the specific requirements of our clients. Depending on the cleaning level required the number of cleaning stages are decided.
We expertise in Multistage Cleaning Systems with Multiple tanks having Ultrasonic, Jet Spray, Rotating Basket, Dunking, Automatic Material Transfer, Handling system, Filtration, Oil Skimming & Drying as various options. Such machine are used for cleaning of Mold Inserts, Auto-Ancillary Parts, Medical Surgical tools and various other types of components.
Multistage Ultrasonic Cleaning Machine with the ultrasonic power. The product comes with digital timer and controlled thermostat. We offer a unique range of ultrasonic cleaning machines that are highly demanded for their excellent performance and low maintenance. Ultrasonic cleaner is majorly used in cleaning surgical instruments, automobile industry, ancillary industrial products, stationary manufacturers and many more.
Ultrasonic Cleaner Auto Industry
We are the manufacturers of custom built Ultrasonic Cleaning machines for degreasing and cleaning of auto parts for OEMs , work shops , job works and auto-restoration industry. We expertise in providing customized designed solution for auto parts cleaning.
Ultrasonic cleaning is a water based cleaning solution where ultrasonic transducers are used to provide cavitation agigation insude the tank which has waer and suitable chemical to clean oil,dirt,debree,grease and other contaminants from various types of auto components.
We expertise in all types of ancilary parts washing like brakepads, steering coloumns, crank shats, pistons, valves, gaskets, clutch pads, mirrors and many more.
Features of the machine:
• Low maintainence machine
• Heavy duty cleaning systems
• Chemical friendly- SS Rust proof body
• Industrial guage farication, build to last
• One year warrenty on any manufacturing defect
• Completely customized to suit the cleaning requirement
• Less human interfearance and less scope of error
• Accurate and uniform cleaning everytime
Automotive Ultrasonic Cleaners
For small autoparts such as plugs, screws, bolts, hex and fixtures, SS ball bearings and components with less than 100 mm length, we suggest a small ultrasonic autoparts cleaner which has a capacity of 4-5 Liters of water and can clean upto a kg of material within 3-30 minutes depending upon the component type and contamination load.
Ultrasonic cleaning machines work on the principle of agitating cleaning solvents using high frequency sound waves, the ultrasonic agitation creates millions of microscopic bubbles that implode releasing vast quantities of energy, this action, know as cavitations, dislodges any contaminant stuck to the surface of a part, ultrasonic cavitations thoroughly cleans every surface in contact with the cleaning fluid
ultrasonic tank models for your choice:
|Ultrasonic Tank Dimension(mm)||550X400X350||600X500X450||1000X600X600|
|Rinsing tank dimension(mm)||550X400X350||600X500X450||1000X600X600|
|Drying tank dimension(mm)||550X400X350||600X500X450||1000X600X600|
|Construction Case||SUS304 (Mirror shining image available)|
|Temperature range||20~80C adjustable|
|Lid & Basket||Available, material: SUS304|
|Cleaning Tank voltage||AC220V/AC380V 3phase|
|Generator Voltage||AC110V / 220V 1phase|
|Features||With triple tanks for cleaning and rinsing.
With filtration system
Multi-direction castors with brake;
1 year warranty
How the System Operates:
The system operates in the following manner:
