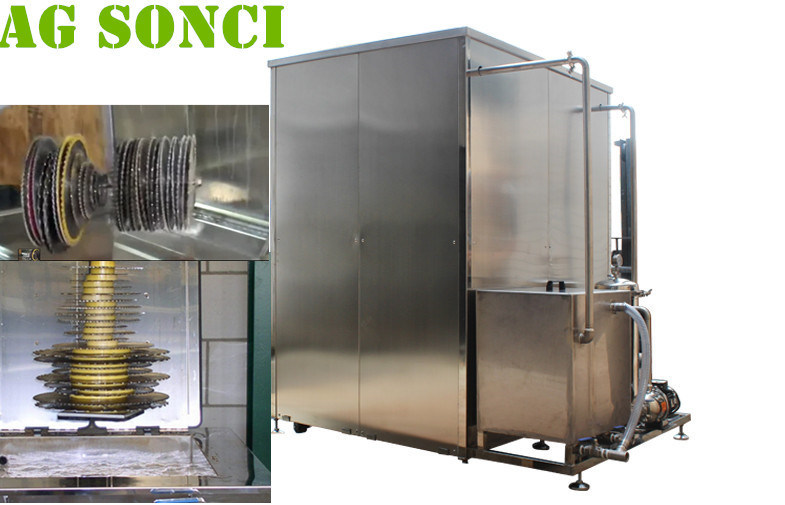

Large Saw Blade Industrial Ultrasonic Cleaning Machine 540L For Continuous Operation

Basic Information
Place of Origin: China
Brand Name: AGSONIC
Certification: CE
Model Number: T-72S
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs / Month
Material: Stainless Steel 304 Application: Remove Oil
Option: Ultrasonic Cleaning Industry: Saw Blade Industrial Ultrasonic Cleaning
Ultrasonic Power: 5400W Heating Power: 12KW
High Light:

industrial ultrasonic cleaning tanks

,

industrial ultrasonic washing machine



Large Saw Blade Industrial Ultrasonic Cleaning Machine 540L For Continuous Operation



Why need saw blade Ultrasonic Cleaner

Saw sales and service company serving a wide range of manufacturers, including furniture makers, closet organizers and skateboard companies. The company is known for restoring saw blades to their very sharpest edge possible, but the old cleaning process required to remove “wood pitch” before even starting the assessment and sharpening stages required extensive soaking and exposed staff to safety hazards and harmful chemicals.
AGSONIC saw blade cleaning process has changed greatly – from an overnight soaking in a toxic solution plus a thorough morning hand cleaning to less than 30 minutes in an ultrasonic unit.


Customer feedback :
Our pledge is to give our customers the most bang for their buck, and AGSONIC helps me deliver on that promise.”
— Saw Company

Ultrasonic is a faster, safer way to clean circular saw blades.



Saw Pro and Saw Pro Plus Saw Blade Cleaner can clean multiple blades up to 35” in diameter, often in as little as three minutes. Then, blades can be dipped in a rust inhibitor, flash-dried and prepared for assessment and sharpening.
• Cleans even the toughest substances from the dirtiest blades
• Streamlined process increases efficiency and productivity
• No soaking or hand cleaning
• Uses safe water-based solutions
• No training required

ultrasonic saw blade cleaner provides the ability to clean blades up to 23” in diameter or 35” if placed vertically.



Saw Blade Ultrasonic Cleaner Industrial

AGSONIC ultrasonic cleaning technology is highly effective, removing contaminants from surface areas inaccessible to spray washing or manual cleaning.

Ultrasonic cleaning technology reaches the most inaccessible surface areas of complex aerospace components used in manufacturing, overhaul, servicing and maintenance stages. Ultrawave’s ultrasonic equipment provides a much faster and higher quality cleaning results than spray washing and manual scrubbing. It is a more environmentally friendly alternative to solvent cleaning.



All ultrasonic baths are supplied complete with lid and basket



Product Description

Welcome to Saw Blade Cleaning,



Our Saw Blade Ultrasonic cleaning process, can effectively clean the following components- Aerospace And Aircraft Parts ,Aluminum castings, engine blocks, Carburetors, Cylinder Heads, Engines, Engine Components, Gear Boxes, Filters, Tubes and Valves.


AG Saw Blade ultrasonic cleaning machine are revolutionizing cleaning methods and processes on the Valve Plates  , our Valve Plates And Aircraft Parts ultrasonic cleaning machine can clean all kinds of automotive, aircraft, and marine engine parts, ultrasonic technology for cleaning parts eliminates manual labor while providing you with superior cleaning action, most parts can be cleaned with environmentally friendly water-based solutions

Saw Blade Ultrasonic cleaning machines work on the principle of agitating cleaning solvents using high frequency sound waves, the ultrasonic agitation creates millions of microscopic bubbles that implode releasing vast quantities of energy, this action, know as cavitations, dislodges any contaminant stuck to the surface of a part, ultrasonic cavitations thoroughly cleans every surface in contact with the cleaning fluid



Model:

ultrasonic tank models for your choice:

Model Tank size Unit size Volume Ultrasonic power Frequency Heating power Timer Heating temperature
LxWxH(mm) LxWxH(mm) (L) (W) (kHz) (KW) (MIN) (℃)
T-12S 500x300x250 640x440x470 38 600 28/40 1.5 1-99











0-80

T-18S 500x350x350 640x490x570 61 900 1.5
T-24S 550x400x400 690x540x620 88 1200 3
T-30S 600x450x400 740x590x620 108 1500 3
T-36S 600x500x450 740x640x670 135 1800 4.5
T-48S 700x500x500 840x640x720 175 2400 6
T-60S 800x600x550 940x740x770 264 3000 7.5
T-72S 1000x600x600 1140x740x820 360 3600 9





Features of the machine:

• Low maintainence machine

• Heavy duty cleaning systems

• Chemical friendly- SS Rust proof body

• Industrial guage farication, build to last

• One year warrenty on any manufacturing defect

• Completely customized to suit the cleaning requirement

• Less human interfearance and less scope of error

• Accurate and uniform cleaning everytime



How the Saw Blade System Operates:

The system operates in the following manner:

In a process termed "cavitation", micron-size bubbles form and grow due to alternating positive and negative pressure waves in a solution. The bubbles subjected to these alternating pressure waves continue to grow until they reach resonant size. Just prior to the bubble implosion, there is a tremendous amount of energy stored inside the bubble itself. Temperature inside a cavitating bubble can be extremely high, with pressures up to 500 atm. The implosion event, when it occurs near a hard surface, changes the bubble into a suction jet about one-tenth the bubble size, which travels at speeds up to 400 km/hr away from the hard surface. With the combination of pressure, temperature, and velocity, the jet frees contaminants from their bonds with the substrate. Because of the inherently small size of the jet and the relatively large energy, ultrasonic cleaning has the ability to reach into small crevices and remove entrapped soils very effectively.



What is cavitation?

"Cavitation" is the rapid formation and collapse of millions of tiny bubbles (or cavities) in a liquid. Cavitation is produced by the alternating high and low pressure waves generated by high frequency (ultrasonic) sound. During the low pressure phase, these bubbles grow from microscopic size until, during the high pressure phase where they are compressed and implode.
