Tank Rotating System Industrial Ultrasonic Cleaning Machine 1200X300X200 Anilox Cylinder Cleaner

Basic Information
Place of Origin: China
Brand Name: AGSONIC
Certification: CE
Model Number: T-48S
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs / Month
Material: Stainless Steel 304 Application: Anilox Cylinder Ultrasound Cleaner
Frequency: 28KHZ Industry: Rotating System
Ultrasonic: Printing Machine Size: 1200 X 300 X 200
High Light:

industrial ultrasonic washing machine


industrial ultrasonic cleaning system


Ultrasound Cleaning Material Tank Rotating System 1200 X 300 X 200 Anilox Cylinder Ultrasound Cleaner


In cleaning machines

Ultrasonic cleaner is, depending on the nature and degree of contamination, applied in a solution of about 4% in cleaning machines. The contaminated object must be placed in the machine and cleaned for 30 - 60 minutes at a temperature of 80°C - 90°C. Finally rinse with water


Ultrasonic Technology

Ultrasonic technology has been used for many years in the cleaning industry. Ultrasonic technology to clean heavily contaminated equipment, such as heavy fuel oil-filters and heat exchangers. This required developing special chemicals and processes for each application. With many years of experience AG Sonic has the expertise to provide plant operators with simple, effective and fast cleaning systems. Depots worldwide are equipped with the ultrasonic cleaning systems providing continual research and development in the field of ultrasonic and chemical technology.


Cleaning Commercial Printing Equipment with Ultrasonics


Improve your printing production time and extend the life of your anilox rolls and sleeves with the regular use of ultrasonic cleaning.

Using ultrasonics is one of the only ways to clean the individual microscopic ink cells on rollers. To efficiently and effectively clean these and other printing parts, AG SONIC has developed methods that are able to be used with both aluminium and steel sleeves and rollers, as well as with all inks (including water-, solvent- and UV-based inks).

Ultrasonic cleaning saves money and minutes, resulting in faster production times. This cleaning method is effective at gently eliminating contaminants in the hard-to-reach spots of even the most intricate parts, extending their lives.


Brief introduction:

- with Heater and Timer

- motor rotation system

- adjustable power (control by generator)

- adjustable temperature

- tank made of 2MM Thick 316L stainless steel, good resistant to highly acid, alkaline

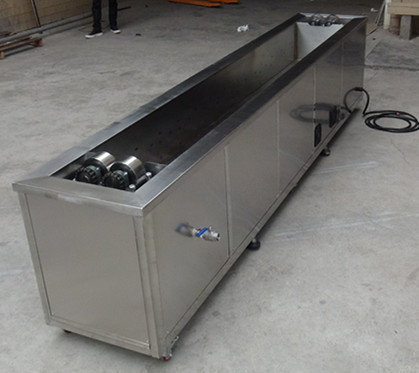

Machine with the rotation system:


Tips for Cleaning Dirty Rollers Using Ultrasonic Anilox Roller Cleaners

Ultrasonic anilox roll cleaner is the most efficient device and method for anilox roll cleaning. This is a tested and proven method for cleaning most of the components which are tough to be cleaned in a normal way.


As Anilox Roll ultrasonic cleaning technique is a fastest method that cleans up to 90% of the product, this is widely used strategy all around the world. Additionally there is no need to let the people watch the cleaning process as the ultrasonic anilox roller cleaning device which is employed for the task, handles it all on its own and provides labour saving benefits.

An ultrasonic anilox cleaning machine reaches to the depth of the roller and clears any residues of the ink or liquid from the holes, cervices, internal chambers which is nearly impossible to be cleaned efficiently with any other device.

The waves of ultrasonic go through the microscopic cell openings disturbing the cleaning liquid deep in the cavities of the cell to remove the settled and dried ink from every bottom corner of the roller.


How to get best Cleaning Effect For Anilox Roll

To get the best cleaning results, it is recommended to make use of a heated cleaning solution in an ultrasonic anilox cleaner which is specifically formulated for the cleaning task at a specific temperature, recommended by the industry experts.

As ultrasonic anilox roll cleaner are mainly designed for anilox rollers, proper care need to be taken to prevent any damages.


These cleaners provides a pre -determined frequency operated on its own with low voltage supply which maintains a stable distribution split from a line fluctuation which results in a hot spot being shifted up and down to prevent the damage due to the concentration of the power at one point on the roller.

Product Description


Item Name Powerful Anilox ultrasonic cleaner
Model T-36S
Ultrasonic Frequency 40 Khz
Ultrasonic Power 1800 W
Heating 2400W
Tank Capacity 185 L
Tank Dimension 1650×450×250 mm
Tank Material 2mm Thick 316L stainless steel
Shell Material stainless steel
Discharge drain have
Button controls Timer, Heating control, Motor control, Power switch
Product Dimension 2050×550×600 mm


Main introduction of anilox roller ultrasonic cleaning machine:

After long time printing, Mesh blockage is likely to result in ink, paint, glue and other dirt coating, in this case, if the mesh cannot be cleaned thoroughly, the printing effect will be effected, printing cannot work normally, anilox roller ultrasonic cleaning machine can do perfect cleaning by ultrasonic cavitation, which can cause jetting force from tiny bubbles in exploding, the contamination will be removed totally, after several minutes cleaning, the anilox roller can come back to its origin, the ultrasonic intensity is visible under controlling, the anilox roller can spin in sitting the tank top, which can avoid axis of anilox roller immersion during cleaning, the spinning force also can fall off the dirty easily in driving, AG SONIC design rubber roller at two sides to drive the anilox roller in spinning as couples, which is separately controlled, is easier in operation, maintenance.


The cleaning method of anilox roller ultrasonic cleaning machine:

Coat the concentrated detergent on the surface of anilox roller according to the clogging degree

After several hours, put the anilox roller into the ultrasonic cleaning tank

At last, rinsing the anilox roller by cleaned water

Or put the detergent into the cleaning tank directly, its ratio depends on the clogging degree,

Ultrasonic have perfect cleaning effect, which can keep the anilox roller as clean as its new, AG SONIC can make to order, pls provide the diameter of your anilox roller and its anix. Also the max length of it to make a customized service


Features of anilox roller ultrasonic cleaning machine:

Cleaning rollers, anilox, ceramic anilox, metal anilox in various industries tank made of 2MM thick 316L stainless steel, resistant to acid, alkali corrosionMotor rotation system to drive the aniloxsuitable for ceramic anilox / metal anilox with overflow protection and water drain system Tank and shell made of quality stainless steel Professional testing, quality assurance Build-in timer, temperature controller and counter down buzzer high quality components, clear circuit
perfect to clean roller, anilox integrated design, easy maintenance Customized design and configuration are ok




Model T-06S T-12S T-18S T-24S
Ultrasonic Power 300 W 600 W 900W 1200W
Ultrasonic Frequency 40Khz 40 Khz 40 Khz 40 Khz
Heating Power 400W 800W 1200W 1200W
Tank Size(mm) 360x175x120 800x320x100 1000x200x100 1200x320x150
Tank Material 316L stainless steel 316L stainless steel 316L stainless steel 316L stainless steel
Shell Material stainless steel stainless steel stainless steel stainless steel
Power supply









Product Dimension(mm) 400×220×360 840×520×680 1000×450×700 1520×370×700



What’s anilox roller and how to clean it efficiently?

Cleaning the equipment and heavy duty products is a tough task that can’t be performed with simple tools. Due to the frequent use of the machine and electronic parts, deep cleaning is essential to give it proper and smooth function in every use, most of companies search for the technology, which covers the work in a easy way

Thanks to the advance developments in the field of technology and printing, that anilox rollers have gained a lot of popularity that a transfer roller. Mainly, anilox roller is a versatile tool in coating and decorative applications and right now it is being used to create prominent capacity whites and foundation coats, mainly for the stretchy packing, applying coatings, adhesives for the cold foil, coating for the images varnishes and other decorative purposes

It is a ceramic roller or an engraved metal roller mainly brought into use for the printing press to transfer the ink form the roller to the printing plate, its main purpose is to pick the ink from the roller or form any of the configurations and deliver a uniform amount of it to the robber plate for the printing process

It is mainly designed for most favorable ink release as a surface and it is laser fixed to reduce the porosity of cell wall and is strengthened by its ceramic subsurface, which benefits the printing quality, optimized cell profiles, improved consistency and more volumes of screen definition

It is mainly designed for most favorable ink release as a surface and it is laser fixed to reduce the porosity of cell wall and is strengthened by its ceramic subsurface, which benefits the printing quality, optimized cell profiles, improved consistency and more volumes of screen definition.
